kTB Manual Noise Generators

Manual Amplitude Adjustable Noise generators covering frequencies from 1MHz to 26.5GHz

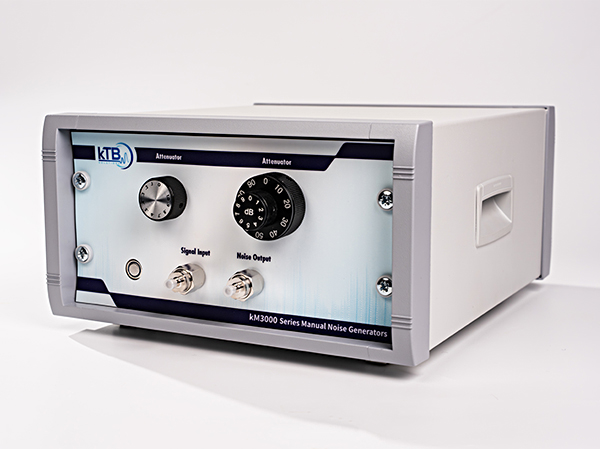

The kM3000 Series noise generators offer a convenient, economical, and rugged solution for a wide range of noise testing applications. Designed for both benchtop use and rack-mounted test stations, these instruments are ideal for any setup requiring reliable noise generation across a frequency range of 1 MHz to 26.5GHz.

Featuring manual control via a front-panel rotary attenuator, the kM3000 Series is simple to operate and helps reduce test setup time. Each unit includes a precision noise source that delivers repeatable, symmetrical white Gaussian noise, integrated with an amplifier, attenuator, and power supply.

Typical applications include:

BER Testing (Eb/No, C/N, SNR), Jamming, Jitter Tolerance Testing, GPS Receiver Testing, EMI Testing, and System & Component Validation amongst others.
Custom configurations are available to meet specific customer requirements.
Please contact the factory for pricing and availability.

The General Specifications:

  • Output White Gaussian noise
  • Attenuator range 0 to 10 dB in 1 dB steps
  • Impedance 50 Ohms • Typical VSWR 1.5:1
  • Standard connector SMA female (K female for nc6226)
  • Dimensions: (Nc6000) 8.5 in. wide x 5 in. high x 12.25 in. deep (nc800) 17 in. wide x 5.25 in. high x 13 in. deep
  • Power 115/220 VAC, 50/60 Hz
  • Operating temperature -10° to + 65°C


    • Options:

  • kM-B - BNC RF connectors
  • kM-N - Type N RF connector
  • kM–C - Signal Combiner, to combine the noise to a user applied signal.
  • kM-P - Custom output noise power ( e.g. kM-P+10 : custom power +10dBm )



    • Model    		 Frequency Power Flatness Spectral Power Noise Attenuation Datasheet
    kM3101 1MHz to 1GHz  0dBm +/- 2.5dB -90dBm/Hz 100dB in 0.1dB steps
    kM3102 10MHz to 2GHz  0dBm +/- 2.5dB -93dBm/Hz 100dB in 0.1dB steps
    kM3103 10MHz to 3GHz  0dBm +/- 2.5dB -95dBm/Hz 100dB in 0.1dB steps
    kM3106 10MHz to 6GHz -10dBm +/- 2.5dB -107dBm/Hz 80dB in 0.1dB steps
    kM3110 10MHz to 10GHz -10dBm +/- 3.5dB -110dBm/Hz 60dB in 0.1dB steps
    kM3218 2GHz to 18GHz -10dBm +/- 2.5dB -112dBm/Hz 60dB in 0.1dB steps
    kM3226 2GHz to 26.5GHz -20dBm +/- 3dB -124dBm/Hz 60dB in 0.1dB steps
