Broadband amplified noise modules designed for RF testing, secure communications, BER analysis, signal impairment and jamming applications, delivering stable and repeatable noise performance across wide frequency ranges.
Designed & ManufacturedThe k1000 series modules produce white Gaussian noise up to +10 dBm, covering frequencies up to 18GHz.
The higher-power modules are designed for secure communication and signal jamming, while the low-power modules with a high crest factor are used for signal impairment in BER and jitter applications.
Each module contains a hermetically packaged noise diode that has been pre-selected for special performance characteristics. The standard module is designed for a 50 Ω load impedance.

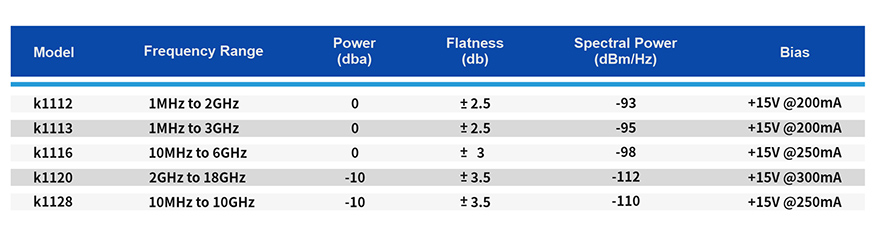

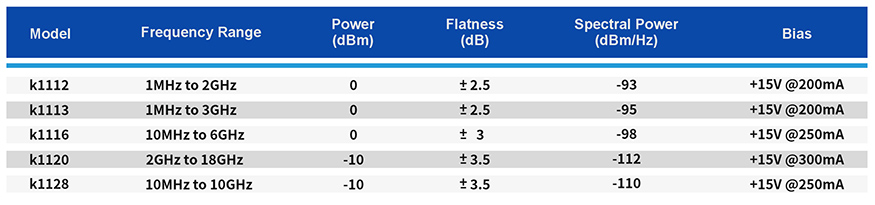

| Model | Frequency | Power (dBm) | Flatness (dB) | Spectral Power (dBm/Hz) | Bias |
|---|---|---|---|---|---|
| k1108 | 100Hz to 500MHz | +10 | ± 1.5 | -77 | +15V @200mA |

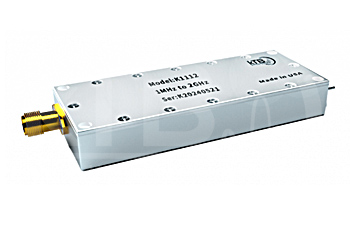

| K1112 | 1MHz to 2GHz | 0 | ± 2.5 | -93 | +15V @200mA |
| k1113 | 1MHz to 3GHz | 0 | ± 2.5 | -95 | +15V @200mA |
| k1116 | 10MHz to 6GHz | 0 | ± 3 | -98 | +15V @250mA |

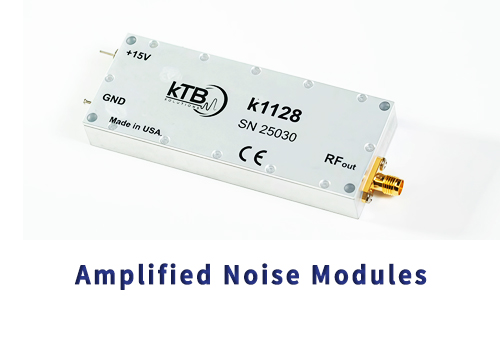

| k1128 | 10MHz to 10GHz | -10 | ± 3.5 | -110 | +15V @250mA |
| k1128B | 10MHz to 10GHz | 0 | ± 3.5 | -102 | +15V @250mA |
| k1120 | 2GHz to 18GHz | -10 | ± 3.5 | -112 | +15V @300mA |
| k1121 | 10MHz to 18GHz | 0 | ± 3.5 | -112 | +15V @500mA |
Note: Custom power and frequencies are available. Please contact Sales for details.
