JSG5000M Series RF Analog Signal Generator
High-performance RF analog signal generator designed for precise signal generation, receiver testing, component characterization and laboratory applications, delivering excellent spectral purity, frequency stability and modulation performance.
The phase noise is below -122 dBc/Hz at 20 kHz offset (1 GHz carrier frequency), delivering a cleaner output signal. Under specific conditions, it can serve as a frequency source.source.

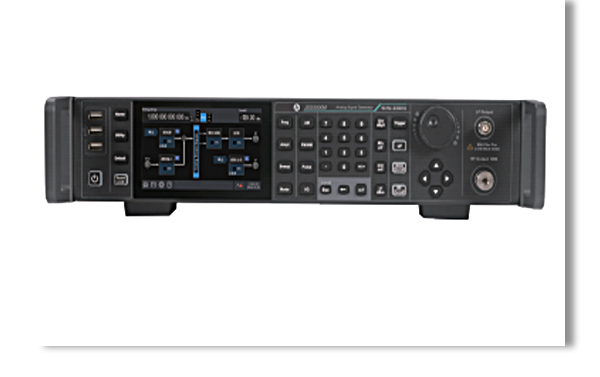

5-inch capacitive touch screen with 800×480 resolution The brand-new flat human-machine interface adopts a signal flow diagram-based operation mode, which simplifies operations, improves work efficiency, and reduces potential misoperations.
Model |
Frequency Range |
Datasheet |
| JSG5022M-P - JSG5022M | 9kHz ～ 22GHz |  |
| JSG5014M-P - JSG5014M | 9kHz ～ 14GHz | |
Product Features:
Maximum frequency: 14GHz/22GHz
Output frequency resolution 0.001Hz
Signal level setting range: -135 dBm to 25 dBm, with -60 dBc spurious suppression
Phase noise: ＜ -122 dBc/Hz @ 1 GHz, 20 kHz offset (typical)
Supports AM/FM/PM/φM analog modulation, with internal/external/combined internal+external modulation modes
Supports frequency/amplitude/frequency+amplitude scan type
Built-in 50MHz function signal generator, supporting basic waveform output, modulation, and frequency sweep
Standard configuration: USB and LAN communication interfaces, supporting standard SCPI programmable commands
