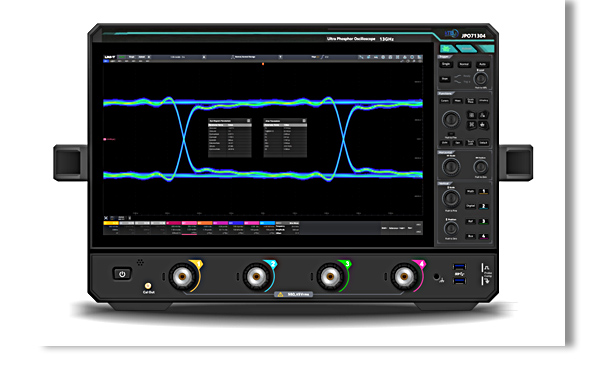

JPO71304 Digital Phosphor Oscilloscope
Core specifications of this product: 13 GHz bandwidth, 4 standard analog channels, 40 GSa/s sampling rate per channel, 8-bit vertical resolution, and a maximum storage depth of 1 Gpts. In addition, it offers a variety of configurable hardware and software analysis functions to fully meet your growing testing requirements.
It can be used as a broadband data acquisition and analysis instrument for capturing ultrafast signals, testing communication links, and acquiring radar pulses.
Model |
Specifications |
Datasheet |
| JPO71304 | 40GSa/s | 13GHz | 1Gpts |  |
Technical Specifications:
Featuring lower noise and higher ENOB, multiple self-developed low-noise conditioning chips significantly enhance the oscilloscope’s performance and specifications.
40 GSa/s per channel when all four channels are active
13 GHz bandwidth per channel when all four channels are active
33ps rise time (typical)
Testable pulse width from 80ps to 1ms
Equipped with independent waveform arithmetic and automatic measurement functions
