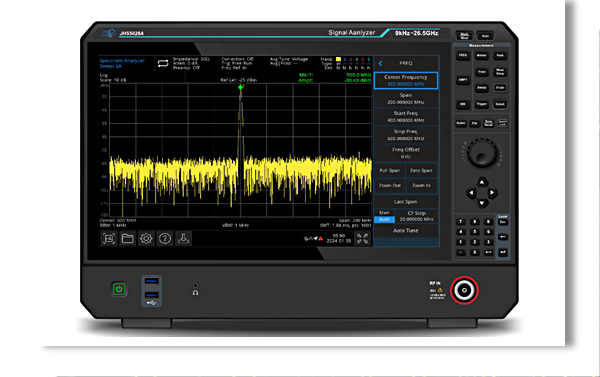

JHS5000A Series Signal Analyzer
Multi-touch FHD Screen for Quick Operation The 15.6-inch multi-touch FHD capacitive screen enables fast menu configuration, and supports various gesture operations on traces including dragging, expanding and zooming.
The measurement of weak signals is susceptible to the internal noise floor of the spectrum analyzer. The JHS5000A Series features a Displayed Average Noise Level as low as-163dBm, and its excellent sensitivity enables effective detection of weak signals.
Model |
Features |
Datasheet |
| JHS5013A | 9kHz to 13.6GHz |  |
| JHS5026A | 9kHz to 26.5GHz | |
Product Features:
Frequency range: 9 kHz to 26.5 GHz (maximum)
Displayed Average Noise Level (DANL): down to -163 dBm (typical value)
Phase noise: ＜-107 dBc/Hz (at 10 kHz offset, typical value)
Maximum number of scan points: 100,001
Minimum Resolution Bandwidth (RBW): 1 Hz
Support for advanced one-click measurement (optional)
Support for EMI pre-scan analysis function (optional)
Support for analog demodulation analysis (optional)
Support for vector signal analysis (optional)
Support for real-time spectrum analysis (optional)
Support for I/Q analysis (optional)
Equipped with a 15.6-inch 1920×1080 high-definition capacitive touch TFT LCD screen
