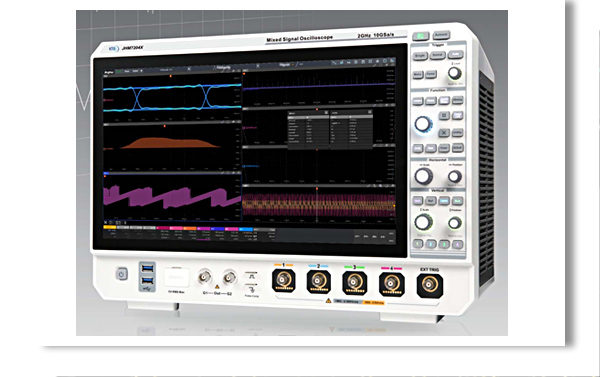

JHM7000X Series Mixed-Signal Oscilloscope

The JHM7000X Series, a flagship mixed-signal oscilloscope newly launched by KTB, excels in high-speed signal analysis with a bandwidth of up to 2.5 GHz and a sampling rate of up to 10 GSa/s.Equipped with proprietary UltraAcq® technology, it achieves a waveform capture rate of up to 800,000 wfms/s and an enhanced 2,000,000 wfms/s in sequential mode.

Combined with an ultra-long memory depth of 1 Gpts, this technology significantly boosts the capability of capturing abnormal signals, as well as the precision of waveform detail measurement and analysis. The oscilloscope supports a rich portfolio of trigger and decoding types, along with advanced measurement and analysis functions including sequential mode, histogram, power analysis, jitter analysis, eye diagram analysis and mask testing. It also features up to 48 automatic measurement parameters, which fully caters to the diverse testing requirements of engineers.
