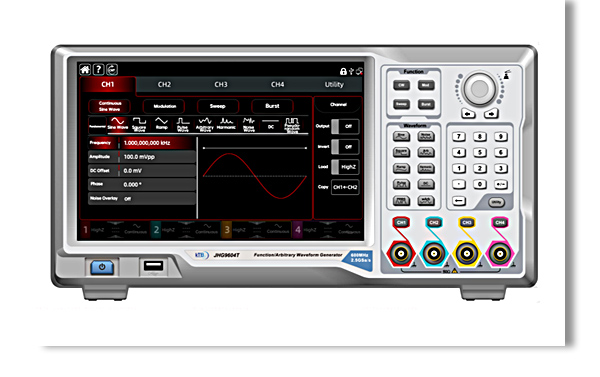

JHG9000T Series Function/ Arbitrary Waveform Generator
The “Specifications”section provides detailed descriptions of the product's warranted performance parameters. Unless otherwise specified, these specifications apply to the temperature range of 18°C to 28°C.
"Typical values" refer to other product performance information not covered by the product warranty. When performance exceeds the technical specifications, 80% of units in
The results are presented in the temperature range of 18°C to 28°C with a confidence level of 95%. Typical performance does not include measurement uncertainty.
The innovative digital trigger system ensures high triggering sensitivity and minimal trigger jitter.
Model |
CH1 & CH2 |
Datasheet |
| JHG9604T | 600MHz |  |
| JHG9504T | 500MHz | |
| JHG9304T | 350MHz | |
Product Features:
Standard four-channel configuration with independent output mode per channel.l
Maximum output amplitude: 20Vpp
Maximum sampling rate: 2.5 GSa/s, 16-bit/14-bit Vertical Resolution
Nine standard waveforms: Sine, Square, Ramp, Pulse, Harmonic, Noise, Pseudo-Random Bit Sequence (PRBS), DC, and Arbitrary.
Adjustable Noise Output
Sine wave output up to 600MHz/500MHz/350MHz with 1 μHz resolution across the full frequency range.
Supports 200MHz/160MHz/120MHz square wave outputs with Edge Times as short as 1.5ns and adjustable Duty Cycles.
