Manual Amplitude Adjustable Noise generator covering frequencies 10MHz to 3GHz

Applications include:

  • BER Testing (Eb/No, C/N, SNR)
  • Jamming
  • Jitter tolerance testing


  • GPS receiver testing
  • EMI testing
  • System and component test

The kM3103 noise generator offer a convenient, economical, and rugged solution for a wide range of noise testing applications.

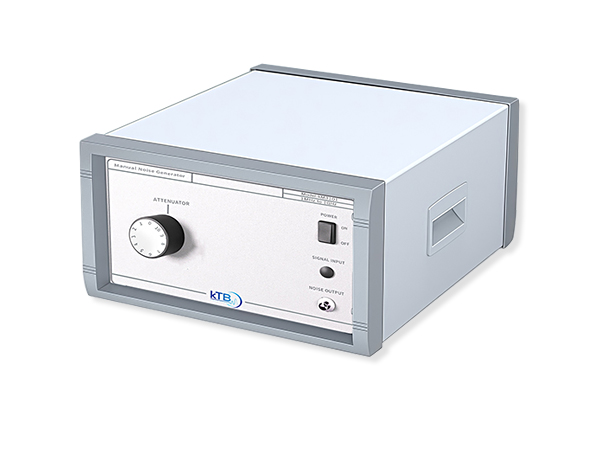

Manual control via a rotary attenuator on the front of the instrument.
Frequency band : 10MHz to 3GHz

General Specifications

  • Output White Gaussian noise
  • 115/240VAC, 50/60 Hz
  • Standard connector SMA female
  • 3U high enclosure
  • Operating Temperature: -10° to +65°C

    • Model    		 Frequency Power Flatness Spectral Power Noise Attenuation Datasheet
    kM3103 10MHz to 3GHz  0dBm +/- 2.5dB -95dBm/Hz 100dB in 0.1dB steps


    Options:

  • kM-B - BNC RF connectors
  • kM-N - Type N RF connector
  • kM–C - Signal Combiner, to combine the noise to a user applied signal.
  • kM-P - Custom output noise power ( e.g. kM-P+10 : custom power +10dBm )
