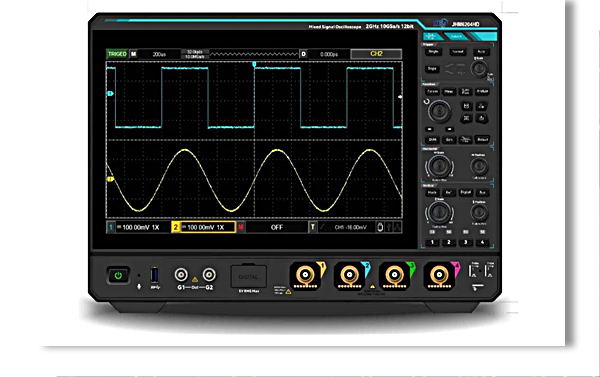

JHM6000HD Series High-Resolution Oscilloscope
The JHM6000HD Series High-Resolution Oscilloscope features a maximum bandwidth of 2 GHz and a sampling rate of up to 10 GSa/s. It is equipped with 4 analog channels, 1 EXT channel, and 1 signal source output, with a maximum memory depth of 1 Gpts. Adopting ultra-fast acquisition technology, it achieves a waveform capture rate of 1,500,000 wfms/s.
The innovative digital trigger system offers high trigger sensitivity and low trigger jitter. It supports a rich set of advanced triggering, serial bus triggering and decoding functions. Additionally, it supports spectrum analysis, power analysis, histogram, waveform recording, Enhanced Resolution (ERES), hardware-accelerated template testing.
Model |
Analog Bandwidth (50Ω, ≥10mV/div, -3dB) |
Datasheet |
| JHM6204HD | 2GHz |  |
| JHM6104HD | 1GHz | |
Technical Specifications:
All specifications are guaranteed, except those marked as "Typical".
Unless otherwise specified, all technical specifications apply to probes with the attenuation switch set to 10× and the JHM6000HD Series High-Resolution Oscilloscopes. To meet these specifications, the oscilloscope must first satisfy the following two conditions:
The instrument must operate continuously for more than 30 minutes at the specified operating temperature.
If the operating temperature variation range reaches or exceeds 5°C, the self-calibration function must be performed.
