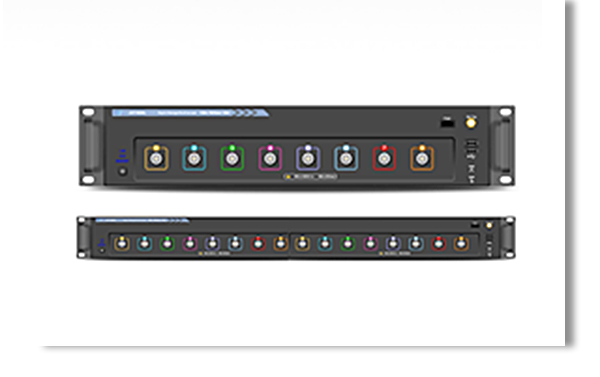

JHD7000 Multi-Channel Acquisition Analyzer
kTB Broadband Acquisition Analyzeris a compact, surface-mount (SMD) designed for high-frequency precision and rapid frequency agility.
Model |
Features |
Datasheet |
| JHD7208 | 10.4 GSPS | 2GHz | 12bit | 8CH |  |
| JHD7016 | 1.25 GSPS | 200MHz | 10bit/12bit | 16CH | |
JHD7208 Broadband Acquisition Analyzer
Bandwidth (-3dB): 2GHz per channel
Sampling Rate: 10.4GSPS for 4 channels;
Vertical Resolution: 12bit
Number of Input Channels: 8
Memory Depth: 100Mpts per channel
Trigger Types: Edge, Slope, Pulse Width
Chassis Size: 2U 19-inch standard chassis
JHD7208 Broadband Acquisition Analyzer
Bandwidth (-3dB): 200MHz per channel
Sampling Rate: 1.25GSPS per channel
Vertical Resolution: 10bit/12bit
Number of Input Channels: 16
Memory Depth: 2Kpts per channel
Trigger Types: Edge, Slope, Pulse Width
Chassis Size: 1U 19-inch standard chassis
