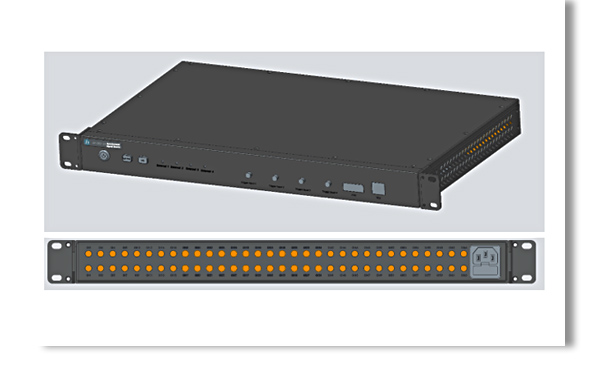

JH1302 Series Synchronous Signal Source
External trigger output synchronization function
Single-pulse output mode
Network remote control capability
Model |
Description |
Datasheet |
| JH1302-64 | 64-channel synchronous signal source/td> |  |
JH1302-32 | 32-channel synchronous signal source/td> | |
JH1302-24 | 24-channel synchronous signal source/td> | |
Product Features:
Signal output channels: The JH1302-64 has 64 channels, while the JH1302-24 has 24 channels.
External trigger input channels: 4 channels
External trigger input voltage range: -5V to +5V
External Trigger Input Voltage Accuracy: ＜ ±(5% + 200 mV)
Output pulse width range: 100ns to 100us
Output pulse width accuracy: <±5%
Pulse output amplitude: 2.5V@50Ω,5V@1MΩ
